Stream Modeling with streamdf

galpy’s streamdf class models tidal streams using action-angle coordinates. The basic idea is that stream stars were stripped from a progenitor at different times and therefore have slightly different orbital frequencies. Over time, this frequency spread causes them to spread out along the orbit, forming a stream. streamdf predicts the stream track on the sky, the density along the stream, and allows sampling of stream stars.

%matplotlib inline
import numpy
import matplotlib.pyplot as plt
from galpy.df import streamdf
from galpy.orbit import Orbit
from galpy.potential import LogarithmicHaloPotential
from galpy.actionAngle import actionAngleIsochroneApprox
from galpy.util import conversion
from astropy import units
import warnings

warnings.filterwarnings("ignore", category=RuntimeWarning)
warnings.filterwarnings("ignore", category=UserWarning)

Physical picture behind streamdf

streamdf is based on a simple action-angle picture of tidal stripping. As an example, the movie below shows the disruption of a cluster on a GD-1-like orbit around the Milky Way from Bovy (2014). The blue curve is the progenitor orbit and the black points are stripped stars.

Once stars are stripped from the progenitor in a static host potential, their actions are approximately conserved, but they have slightly different orbital frequencies from the progenitor and from one another. Those small frequency offsets accumulate into angle offsets that grow roughly linearly with time, which is why the debris stretches into a long, thin stream. Because the debris occupies a distribution in actions and frequencies, the stream track is in general not the same as the progenitor orbit. The next movie shows the debris in action space: stars in the stream settle onto nearly fixed actions once they are stripped, while stars still bound to the cluster do not.

Angle offsets then grow approximately linearly with time, which is what stretches the debris into a stream.

Finally, the frequency-angle structure along the stream explains why streams are not exactly orbits: stars removed with larger frequency offsets run away faster, so different parts of the stream trace slightly different effective orbits.

Later in this notebook, freqEigvalRatio measures how nearly one-dimensional the debris is, misalignment measures how well the stream aligns with the progenitor frequency direction, and plotCompareTrackAAModel checks that the computed track is self-consistent in frequency-angle space.

Initialize streamdf

We need three ingredients to initialize a streamdf instance:

1. A gravitational potential

2. An action-angle calculator for that potential

3. A progenitor orbit

As an example, we will use the a simple flattened logarithmic potential, the actionAngleIsochroneApprox method for computing actions, and a progenitor orbit with a pericenter of 14 kpc and an apocenter of 26 kpc.

lp = LogarithmicHaloPotential(normalize=1.0, q=0.9)
aAIA = actionAngleIsochroneApprox(pot=lp, b=0.8)
obs = Orbit([1.56148083, 0.35081535, -1.15481504, 0.88719443, -0.47713334, 0.12019596])

Now we initialize the streamdf model. The key parameters are:

• sigv: the velocity dispersion of the progenitor

• progenitor: the progenitor orbit

• pot: the gravitational potential

• aA: the action-angle instance

• leading: whether to model the leading (True) or trailing (False) arm

• tdisrupt: the time since disruption began

sigv = 0.365 * units.km / units.s
sdf = streamdf(
    sigv,
    progenitor=obs,
    pot=lp,
    aA=aAIA,
    leading=True,
    nTrackChunks=11,
    tdisrupt=4.5 * units.Gyr,
)

galpyWarning: In versions >1.3, the output unit of streamdf.misalignment has been changed to radian (from degree before)

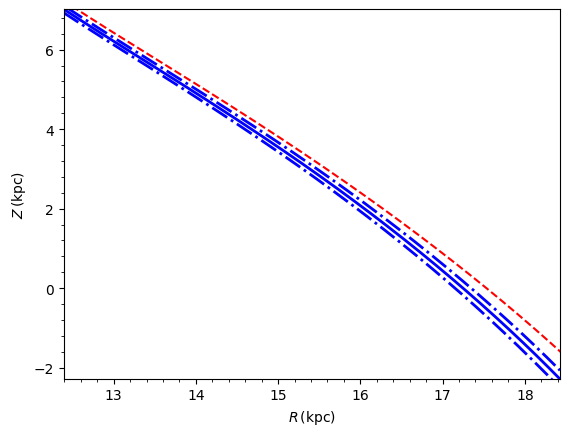

Plot the stream track

We can visualize the predicted stream track and the progenitor’s orbit.

sdf.plotTrack(
    d1="r",
    d2="z",
    interp=True,
    color="b",
    spread=2,
    overplot=False,
    lw=2.0,
    scaleToPhysical=True,
)
sdf.plotProgenitor(
    d1="r", d2="z", color="r", overplot=True, ls="--", scaleToPhysical=True
)
plt.xlabel(r"$R\,(\mathrm{kpc})$")
plt.ylabel(r"$Z\,(\mathrm{kpc})$");

Unified StreamTrack interface

galpy’s StreamTrack class is a smooth phase-space track container that’s shared across all stream DFs. streamspraydf returns one from streamspraydf.streamTrack() (fit to sampled particles); streamdf returns the same kind of object from streamdf.streamTrack(), built directly from the analytically computed action-angle track — no particle fitting required.

The StreamTrack exposes a richer accessor set than plotTrack: sky / Galactic / custom-frame coordinates with proper-motion accessors, plus a cov(basis=...) method that returns the 6×6 phase-space covariance in any of galcenrect, galcencyl, sky, galsky, or customsky bases via analytical Jacobian transforms.

track = sdf.streamTrack()
print("type:", type(track).__name__)

# Sample accessors at five tps spanning the stream (LB axes in deg / kpc / km/s / mas/yr).
tps = numpy.linspace(0.0, sdf._deltaAngleTrack * 0.9, 5)
print("ll   (deg) :", track.ll(tps, use_physical=False))
print("bb   (deg) :", track.bb(tps, use_physical=False))
print("dist (kpc) :", track.dist(tps, use_physical=False))
print("vlos (km/s):", track.vlos(tps, use_physical=False))

type: StreamTrack
ll   (deg) : [160.96266762 200.33106506 221.71399911 234.64875218 244.02402589]
bb   (deg) : [56.81288729 41.40802881 21.00715844  5.10575318 -5.81364365]
dist (kpc) : [ 8.34973111  7.92760519  8.89589981 10.7603418  12.98833547]
vlos (km/s): [-117.9274023    85.75097646  255.29006974  342.5453684   374.56839459]

# 6x6 covariance in the (l, b, dist, pmll, pmbb, vlos) Galactic-sky basis at one tp,
# in physical units (deg / kpc / mas/yr / km/s). With ``use_physical=True`` the
# Jacobian is run against the stored ``ro=8 kpc`` and ``vo=220 km/s``.
C = track.cov(0.5, basis="galsky", use_physical=True)
sigmas = numpy.sqrt(numpy.diag(C))
for name, unit, s in zip(
    ["ll", "bb", "dist", "pmll", "pmbb", "vlos"],
    ["deg", "deg", "kpc", "mas/yr", "mas/yr", "km/s"],
    sigmas,
):
    print(f"sigma({name}) = {s:.3g} {unit}")

sigma(ll) = 0.465 deg
sigma(bb) = 0.299 deg
sigma(dist) = 0.0351 kpc
sigma(pmll) = 0.0365 mas/yr
sigma(pmbb) = 0.0209 mas/yr
sigma(vlos) = 1.2 km/s

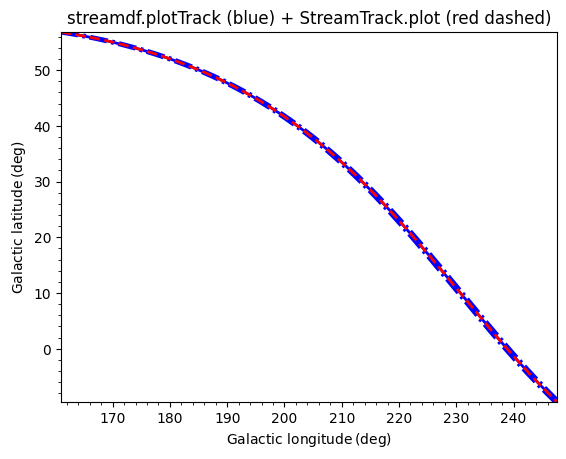

# StreamTrack.plot draws the same kind of figure as streamdf.plotTrack and
# accepts every accessor name as an axis label, including sky bases. Overlay
# both on a single set of axes for comparison.
sdf.plotTrack(d1="ll", d2="bb", spread=1, color="b", lw=2.0)
track.plot(d1="ll", d2="bb", spread=1, color="r", ls="--", lw=2.0)
plt.title("streamdf.plotTrack (blue) + StreamTrack.plot (red dashed)");

The custom_sky_transform argument to streamdf (a 3×3 rotation from equatorial coordinates to a custom \((\phi_1, \phi_2)\) sky frame) is forwarded to the StreamTrack, enabling its phi1, phi2, pmphi1, and pmphi2 accessors. A convenience helper, Orbit.align_to_orbit, builds a rotation matrix that aligns \(\phi_1\) with the progenitor’s track.

For sky covariance bands, the cov attached to the streamTrack is the local perpendicular cov (parallel-angle variance = sigangledAngle**2), matching the streamspraydf streamTrack convention. The legacy _allErrCovsXY keeps its likelihood-marginal semantics (parallel-angle variance = 1 rad², needed by gaussApprox) and is what plotTrack(spread=...) uses via a 2D minor-eigenvalue projection. Both pipelines agree exactly at the chunk grid and report the same perpendicular width; between chunks the eigen-slerp interpolation (plotTrack) and entry-wise linear interpolation (StreamTrack.plot) can differ at the percent level.

Stream length and width

We can compute the stream length (the angular extent along the stream) and the width (the spread perpendicular to the stream track).

print("Stream length (radians):", sdf.length(ang=True))
print("Stream length (physical kpc):", sdf.length(phys=True))

Stream length (radians): 93.48282256049195
Stream length (physical kpc): 12.31150295587134

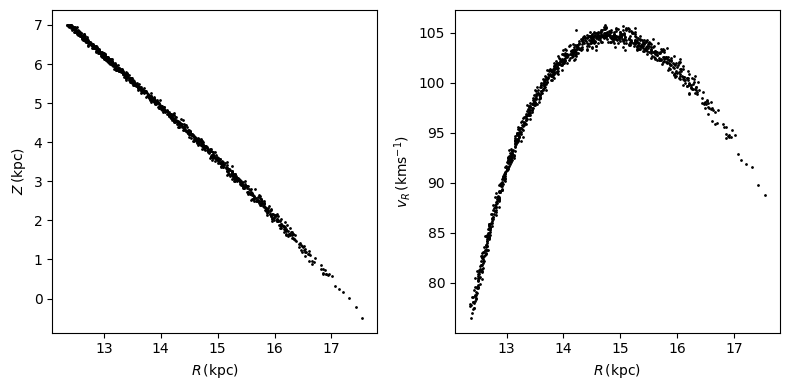

Sample from the stream

We can draw random samples of stars from the stream distribution function.

numpy.random.seed(1)
RvR = sdf.sample(n=1000)
plt.figure(figsize=(8, 4))
plt.subplot(1, 2, 1)
plt.plot(RvR[0] * 8.0, RvR[3] * 8.0, "k.", ms=2)
plt.xlabel(r"$R\,(\mathrm{kpc})$")
plt.ylabel(r"$Z\,(\mathrm{kpc})$")
plt.subplot(1, 2, 2)
plt.plot(RvR[0] * 8.0, RvR[1] * 220.0, "k.", ms=2)
plt.xlabel(r"$R\,(\mathrm{kpc})$")
plt.ylabel(r"$v_R\,(\mathrm{km s}^{-1})$")
plt.tight_layout();

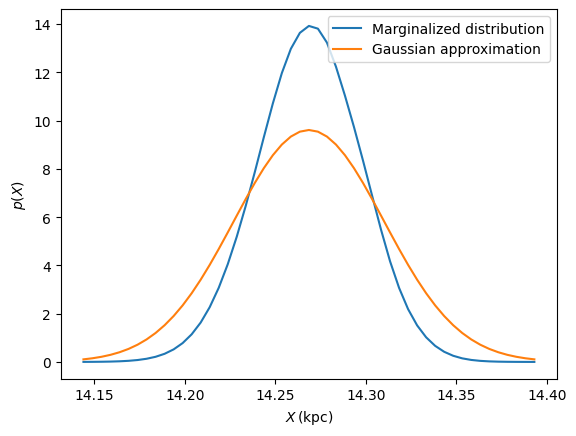

Predict observables with callMarg

streamdf can also compute marginalized predictions for observables. For example, the predicted distribution of distance at a given angle along the stream, marginalizing over all other phase-space dimensions. Dimensions set to None are marginalized over.

For plotting these marginalized distributions, it is useful to start with a Gaussian approximation to the result, which can be obtained using the gaussianApprox method. This gives us a mean and covariance for the distribution of observables at each point along the stream, which we can use to set the range and scale of our plots. We can then use callMarg to compute the actual marginalized distribution and compare it to the Gaussian approximation:

meanp, varp = sdf.gaussApprox([None, None, 2.0 / 8.0, None, None, None])
xs = numpy.linspace(
    meanp[0] - 3 * numpy.sqrt(varp[0, 0]), meanp[0] + 3 * numpy.sqrt(varp[0, 0]), 51
)
logps = numpy.array([sdf.callMarg([x, None, 2.0 / 8.0, None, None, None]) for x in xs])
ps = numpy.exp(logps)
ps /= numpy.sum(ps) * (xs[1] - xs[0]) * 8.0
plt.plot(xs * 8.0, ps, label="Marginalized distribution")
plt.plot(
    xs * 8.0,
    1.0
    / numpy.sqrt(2.0 * numpy.pi)
    / numpy.sqrt(varp[0, 0])
    / 8.0
    * numpy.exp(-0.5 * (xs - meanp[0]) ** 2.0 / varp[0, 0]),
    label="Gaussian approximation",
)
plt.xlabel(r"$X\,(\mathrm{kpc})$")
plt.ylabel(r"$p(X)$")
plt.legend();

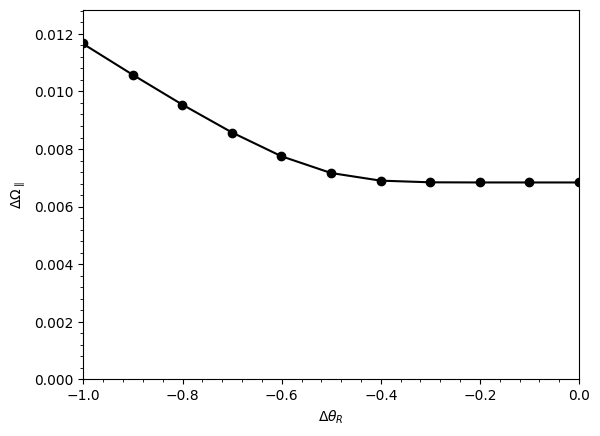

Checking track accuracy

To verify that the stream track is calculated accurately, use plotCompareTrackAAModel (the track in frequency-angle space should match the points calculated from the track’s phase-space positions). Also check the eigenvalue ratio and misalignment:

# Eigenvalue ratio: a large value means a ~1D stream will form
print("Frequency eigenvalue ratio (isotropic):", sdf.freqEigvalRatio(isotropic=True))
print("Frequency eigenvalue ratio (model):", sdf.freqEigvalRatio())

# Misalignment between progenitor frequency vector and mean stream frequency
print("Misalignment (rad):", sdf.misalignment())

sdf.plotCompareTrackAAModel()

Frequency eigenvalue ratio (isotropic): 34.44969734444917
Frequency eigenvalue ratio (model): 29.625559518503955
Misalignment (rad): -0.00864416358230713

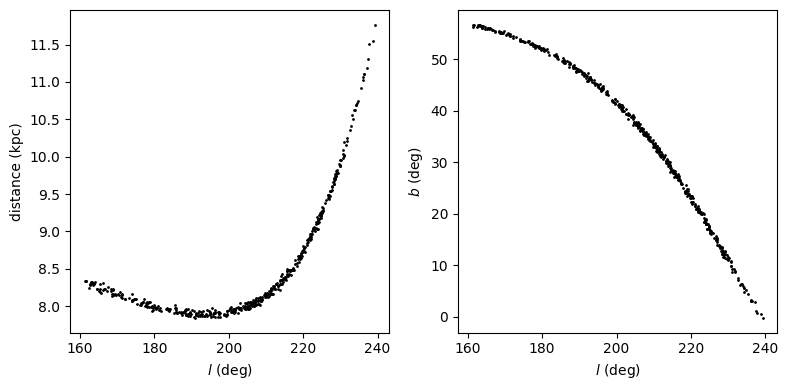

Mock stream data in observable coordinates

We can generate mock data directly in Galactic coordinates (l, b, distance, proper motions, line-of-sight velocity):

numpy.random.seed(1)
# Sample in (l, b, dist, pmll, pmbb, vlos) coordinates
lb = sdf.sample(n=500, lb=True)
plt.figure(figsize=(8, 4))
plt.subplot(1, 2, 1)
plt.plot(lb[0], lb[2], "k.", ms=2)
plt.xlabel(r"$l$ (deg)")
plt.ylabel(r"distance (kpc)")
plt.subplot(1, 2, 2)
plt.plot(lb[0], lb[1], "k.", ms=2)
plt.xlabel(r"$l$ (deg)")
plt.ylabel(r"$b$ (deg)")
plt.tight_layout();

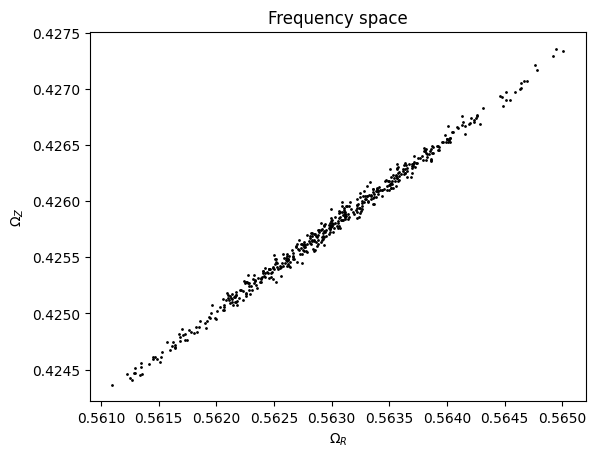

Frequency-angle sampling

We can also sample in frequency-angle coordinates, which returns frequency vectors, angle vectors, and stripping times:

numpy.random.seed(1)
# Returns (frequencies [3,N], angles [3,N], stripping_time [N])
mockaA = sdf.sample(n=500, returnaAdt=True)
plt.plot(mockaA[0][0], mockaA[0][2], "k.", ms=2)
plt.xlabel(r"$\Omega_R$")
plt.ylabel(r"$\Omega_Z$")
plt.title("Frequency space");

Full PDF evaluation

The stream PDF (log probability of a phase-space position) can be evaluated directly:

# Evaluate log PDF at the progenitor location
logpdf = sdf(obs.R(), obs.vR(), obs.vT(), obs.z(), obs.vz(), obs.phi())
print("log PDF at progenitor:", logpdf)

# Evaluate at a point near the stream track (small offset in R)
logpdf_near = sdf(
    obs.R() + 0.01, obs.vR(), obs.vT(), obs.z(), obs.vz(), obs.phi() + 0.05
)
print("log PDF near stream track:", logpdf_near)

# A point far from the stream has -inf probability
logpdf_far = sdf(obs.R() - 0.5, obs.vR(), obs.vT(), obs.z() + 0.5, obs.vz(), obs.phi())
print("log PDF far from stream:", logpdf_far)

log PDF at progenitor: [-8.49066974]
log PDF near stream track: [-152.00787863]
log PDF far from stream: [-inf]

Modeling gaps in streams: streamgapdf

galpy also contains streamgapdf, a subclass of streamdf for modeling the effect of impacts from dark-matter subhalos on streams (see Sanders, Bovy, & Erkal 2016). It shares many methods with streamdf but additionally takes parameters specifying the impact (impact parameter, velocity, location, time, and subhalo mass/structure). This allows one to model gaps and density variations along streams caused by subhalo encounters.

Let’s set up a basic streamgapdf example following the Sanders et al. paper:

from galpy.df import streamgapdf

lp = LogarithmicHaloPotential(normalize=1.0, q=0.9)
aAI = actionAngleIsochroneApprox(pot=lp, b=0.8)
prog_unp_peri = Orbit(
    [
        2.6556151742081835,
        0.2183747276300308,
        0.67876510797240575,
        -2.0143395648974671,
        -0.3273737682604374,
        0.24218273922966019,
    ]
)
sigv = 0.365 * (10.0 / 2.0) ** (1.0 / 3.0) * units.km / units.s
tdisrupt = 10.88 * units.Gyr

# Impact parameters: time of impact, location along stream, impact parameter,
# velocity of the subhalo, and subhalo mass (as a Plummer sphere)
GM = 10.0**8.0 * units.Msun
rs = 0.625 * units.kpc
impactb = 0.0
subhalovel = numpy.array([6.82200571, 132.7700529, 149.4174464]) * units.km / units.s
timpact = 0.88 * units.Gyr
impact_angle = -1.34

sdf = streamdf(
    sigv,
    progenitor=prog_unp_peri,
    pot=lp,
    aA=aAI,
    leading=False,
    nTrackChunks=26,
    nTrackIterations=1,
    sigMeanOffset=4.5,
    tdisrupt=tdisrupt,
)

sdf_gap = streamgapdf(
    sigv,
    progenitor=prog_unp_peri,
    pot=lp,
    aA=aAI,
    leading=False,
    nTrackChunks=26,
    nTrackIterations=1,
    sigMeanOffset=4.5,
    tdisrupt=tdisrupt,
    impactb=impactb,
    subhalovel=subhalovel,
    timpact=timpact,
    impact_angle=impact_angle,
    GM=GM,
    rs=rs,
)

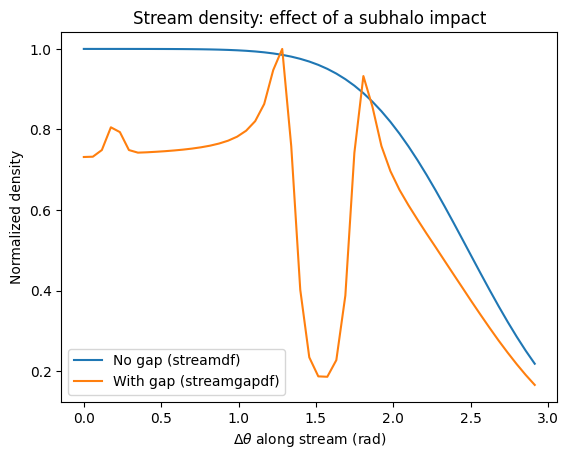

# Compare density along the stream with and without the gap
stream_length_deg = sdf.length(ang=True)
dangle = numpy.linspace(0.0, numpy.radians(stream_length_deg), 51)
dens_nogap = numpy.array([sdf.density_par(da) for da in dangle])
dens_gap = numpy.array([sdf_gap.density_par(da) for da in dangle])

plt.plot(dangle, dens_nogap / numpy.max(dens_nogap), label="No gap (streamdf)")
plt.plot(dangle, dens_gap / numpy.max(dens_gap), label="With gap (streamgapdf)")
plt.xlabel(r"$\Delta\theta$ along stream (rad)")
plt.ylabel("Normalized density")
plt.legend()
plt.title("Stream density: effect of a subhalo impact");
